1 fiber slot and 4 rj45 port smart telecommunication equipment industrial ethernet switch

1 Fiber Slot And 4 Rj45
  • Seller Shenzhen Yuhang Communication Technology Co., Ltd.
  • Min. Order 1 Piece/Pieces
  • FOB Price US $10-200 /Piece

Product Description

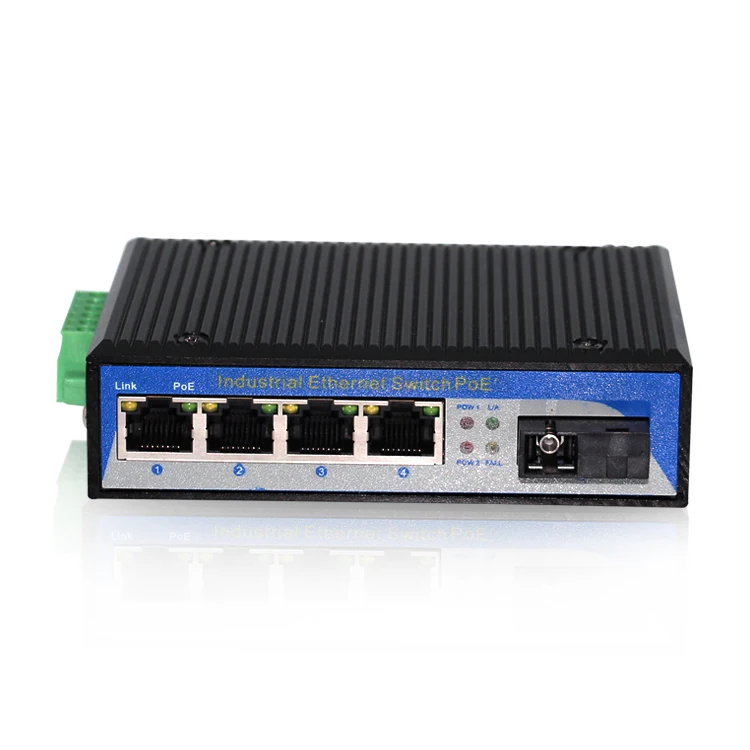

1 fiber slot and 4 rj45 ports samart telecommunication equipment industrial ethernet switch

Features

4 Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/

Industrial Switch POE/Industrial Fiber Switch/Industrial Switch/Inustrial POE Switch

4-Port 10/100/1000Base POE ports + 1 (100/1000M) SFP Slots
Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function
G.8032, support <50ms industrial quick ring protection

52 VDC (10 ~58VDC), dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.

♦DIN-Rail mounting or Wall-mounted install

Specification
Specification
Product Name 4 Port 10/100/1000M Industrial PoE Switch
Product Model YH614GP-SFP
Interface 4x 10/100/1000Base-T ports POE + 1x Gigabit SFP slots
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports: 1-4 ports support PoE
Each PoE Port: Max. 30 Watts
Power Pin Assignment:1/2+;3/6-
Output Voltage: DC52V
Fiber Media Multi-mode: 2km; Single-mode: 20/40/60/80KM
Performance Specification Bandwidth: 10Gbps
Packet Buffer Memory:1M
Packet Forwarding Rate:1488000pps/port
MAC Address Table: 8K
Forwarding Mode Store-and-Forward
Protection Lightening protection, IP40 protection
Power Supply Input Voltage: DC52V (10~58V) /Terminal block
Other Specifications
Working Environment Working temperature: -40~80℃ ; Storage temperature: -45~85℃
Relative Humidity: 5%~95 %( no condensation)
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Weight & Size Product Weight: 0.85 KG
Product size (L×W×H): 143mm× 104mm× 45mm
Warranty 6-years
Product Display

Package

Workshop Show

Exhibition Show
