Adapt harsh environment high stability industrial pressure transmitter

Adapt Harsh Environment High Stability Industrial
  • Seller Dalian Rayco Electronics Co., Ltd.
  • Min. Order 1 Unit/Units
  • FOB Price US $40-90 /Unit

Product Description

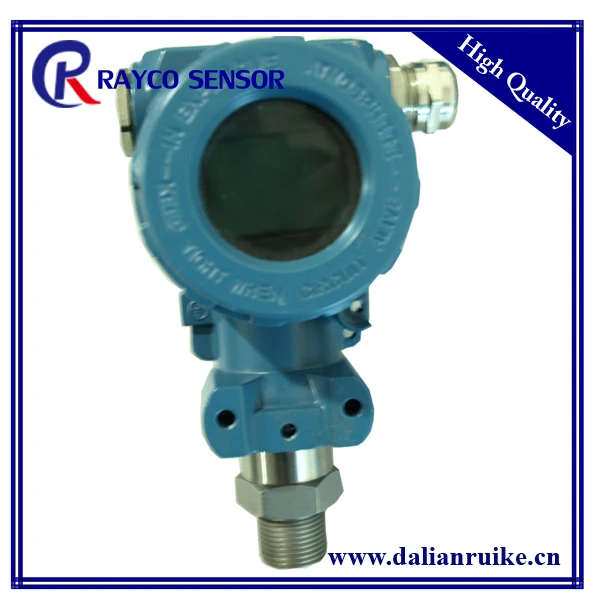

Adapt harsh environment high stability industrial pressure transmitter

Product Description

Features

  • Single Piece Construction, No O-Rings
  • Explosion-proof circuit design
  • Adapt harsh environment
  • Variety of output signals
  • High reliability and stability
  • Overload Ability Strong
  • Wide Operating Temperature Range

Typical Applications

  • Industrial field pressure test system

Performance Specifications

Supply Voltage/5Vdc or 9~30Vdc

Ambient Temperatre/25°C

Parameters Values Unit
Measuring range 0··1~0··300 MPa
Accuracy (combined non linearity, hysteresis, and repeatability) ±0.5 ±0.25 ±0.1 %Span
Temperature drift-Zero ±0.02 %FS/°C
Temperature drift-Span ±0.02 %FS/°C
Long term stability (1 year) ±0.25 %Span
Maximum Resistance Between Transducer & Body (250Vdc) 50
Pressure Overload Rated
Burst Pressure Rated
Pressure Cycles (Zero to Full Scale) 10 Million
Compensated Temperature -20~85 °C
Operating Temperature -40~125 °C
Storage temperature -40~125 °C
Vibrate ±20 g
Shock (11mS) 100 g

Note: we are manufacture, special needs, please contact us.

Output Options

Dimensions

Standard ranges

Range

Unit

Range

Unit

0 ~ 500

Psi

0 ~ 3.5

MPa

0 ~ 1000

Psi

0 ~ 7

MPa

0 ~ 1500

Psi

0 ~ 10

MPa

0 ~ 3K

Psi

0 ~ 20

MPa

0 ~ 6K

Psi

0 ~ 40

MPa

0 ~ 9K

Psi

0 ~ 60

MPa

0 ~ 10K

Psi

0 ~ 70

MPa

Note: We are the manufacturer, special needs, please contact us.



Packaging & Shipping

Packaging Details: Standerd exported packing

Shipping Details: 3 -12 days, any port of China

Our Services

uService standards: we are committed to providing a high quality,and responsive services to all
clients
uThe fastest reply: detailed informations, specific model and price of products will be provided
quickly after receiving your inquiry.
uQuality assurance: good quality is assured by advanced manufacturing technology. And all
products will be checked by our quality-control manager.
uExcellent package: each unit has individual box and all boxes are packed in standard packages.
uOEM available
