Bodor laser co2 cnc mini small Laser cutting engraving Machine machinery wood arcylic etc low cost

Bodor Laser Co2 Cnc Mini Small
  • Seller Jinan Bodor CNC Machine Co., Ltd.
  • Min. Order 1 Set/Sets cutting machine
  • FOB Price US $2000-8000 /Set

Product Description

Product Description

bodor laser co2 cnc mini small Laser cutting engraving Machine machinery wood arcylic etc


SPECIFICATIONS


1. RECI laser tube.
2. WIFI control.
3. Taiwan imported square track.
4. Japan Omron electron device.
5. 3 in 1 closed beam.
6. BIG EYE super transparent windows.
7. Continued carving off function.A
8. The light of red positioning.
9. Open cover protection function.
10. Taiwan imported belt.
11. RDworks laser control system.
12. Standard blade table
13. LED lights
14. USB interface
15. CW5000 water chiller
16.Blade working table

WIFI wireless control


Convenient - Wireless control High

efficiency - One PC can control more than one set machines

Laser tube


1.When the working current is 4mA and the tube is in the state of pre-ionization, the laser can be used for high-frequency impulse engraving.
2.The product is featured for working under large power rate and long service time, which is suitable for the cutting of knife mold machine and thick acrylic sheet.



Japan Omron Electronic components



Japan Omron Electronic components

HIWIN


It features equal load ratings in the radial, reverse radial, lateral directions, and self-aligning to absorb installation-error.

Thus, the HG series linear guideline is characterized with long service life with high speed, high accuracy and smooth linear motion.

Stepper motor.

Low Noise
Low Vibration
Smooth Operation
High Torque
Higher Acceleration Ability
Better Precision
Better Acceleration Performance
3 Phase NEMA 42 stepper Motor


Mini Laser BCL-MU


Mini Laser BCL-MU

Smart size, easy to place and set to work.

1. BIG EYE design of transparent acrylic window, convenient for viewing.

2. Stainless steel hollowed table, easy to discharge smoke.

3. Electric up-down work table, facilitated with ball screw transmission system, capable of processing non-metal materials of different thickness.

4. Under non-work state, open left door to clean the interior space.

5. 3 in 1 closed crossbeam (guide rail, belts, tank chain integrated in the beam).


Technical Parameters

Model
BCL0503MU
Working Area
500*300mm
Laser Power
40W
Laser Type
CO2 Sealed Laser Tube, 10.6μm
Cooling Type
Water Cooling
Laser Output Control
(0-100% Set by Software )
Smallest Character Engraving
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Engraving Speed
0-60000mm/min
Cutting Speed
0-40000mm/min
Highest Scanning Precision
4000DPI
Positioning Accuracy
0.05mm
Positioning Speed
20mm/min
Max.Cutting Thickness
40mm
Max.Cutting Speed
20m/min
Controlling Software
DSP Control System
Auxiliary Equipments
Exhaust Fan and Air Exhaust Pipe
Working Environment
Temperature:0-45C,Humidity 5-95%(No Condensate Water
Graphic Format Supported
DST PLT BMP DXF DWG AI LAS,etc
Compatible Software
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD software etc
Drive System
High-precision 3-phase Stepper Motor
Power Supply
AC110V/220V+10%,50HZ/60HZ
Optional Spare Parts
Honeycomb Worktable, Rotary Device,Auto-focus Device
HOT SALE POINTS


Application

OUR BRAND BODOR

THE FUTURE IS NOW

Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with

RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and

manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international

manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,3-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted

customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 140 countries. Bodor laser will try our best to serve for you suitable

laser solutions. Welcome you to join Bodor family,share top laser products and services together with

word-wide customers.

Factory

Our Factory

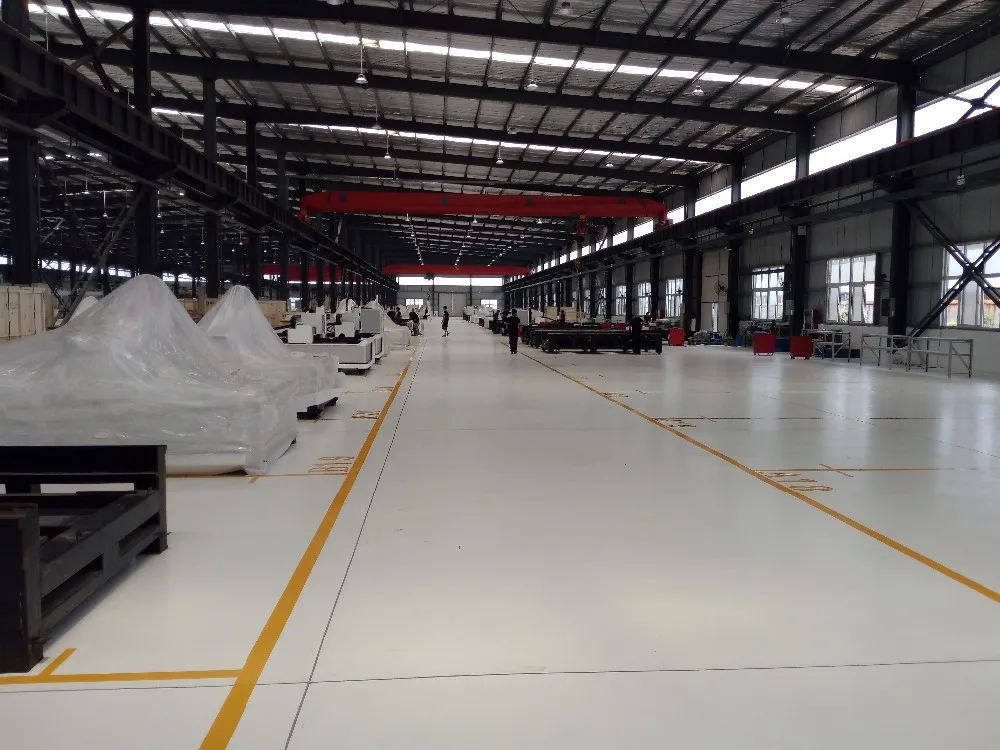

Workshop

Our Workshop

Bureau

Our sles departement

customer

customers worldwide

HIGH STANDARD EUROPEAN QC SYSTEME


SWISS DESIGN

BODOR Switzerland Center is localed in Jambe-Ducommun 16, CH-2400 Le Locle, Switzerland, the hub with a long history in laser products research and development.

Tel:+41 79 916 57 43

Add:Jambe-Ducommun 16, CH-2400 Le Locle, Switzerland

OUR SERVICE


Pre-sale Service
* Provide relevant technical guidance according to customers demands.
* Assist customers to design laser cutting solutions with technical feasibility.
* Provide equipment demonstration for customers to assess,make samples and do tests etc.

After-sale service


* Training how to instal the machine, training how to use the machine in our factory.
*Company can provide 24-7 online service whenever customers have any questions or requests in 16 languages.
* Engineers available to serve customers overseas.

*solve problems easily in distance with our WIFI control


PACKAGING&SHIPPING

1. Our Wooden Case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
