Food Beverage Application Automatic Juice Filling Machine

Food Beverage Application Automatic Juice Filling
  • Seller Zhangjiagang City Wanjin Machinery Co., Ltd.
  • Min. Order 1 Unit/Units
  • FOB Price US $15000-35000 /Unit

Product Description

Product Description

Product Application

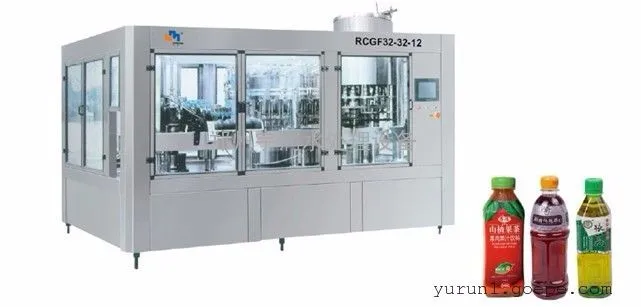

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.It is equipped with perfect temperature control system,reverse-flow system,automatic cleaning system and control program.Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.

Model
RCGF8-8-3
RCGF14-12-5
RCGF18-18-6
RCGF24-24-8
RCGF32-32-10
RCGF40-40-12
RCGF50-50-15
RCGF60-60-15
Number of rinsing head
8
14
18
24
32
40
50
60
Number of filling head
8
12
18
24
32
40
50
60
Number of capping head
3
5
8
8
10
12
15
15
Rated production capacity
1000-2000
2000-4000
5000-6000
8000-12000
12000-15000
16000-20000
22000-24000
25000-28000
Installed capacity
3
3.5
4
4.8
7.6
8.3
9.6
9.6
Overall size
1900*1420*2000
2200*1600*2300
2450*1900*2300
2750*2180-2400
4000*2300*2300
4550*2650*2300
5450*3210*2300
5450*3210*2300

WASHNG PART

FILLING PART

CAPPING PART

Main Features

1.The Automatic bottled juice production equipment is used to fill juice, tea and other non-gas beverage.
2.All the machine part which contact with liquid is high quality stainless steel 304/316. The relative fittings are from international famous brand.
3.The Automatic bottled juice production equipment was equipped with suspension type air conveyor and frequency control of motor speed.
4.This Automatic bottled juice production equipment is comprised of rinsing, filling and capping system.
5.This Automatic bottled juice production equipment owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

Detailed Images

Machine Parts

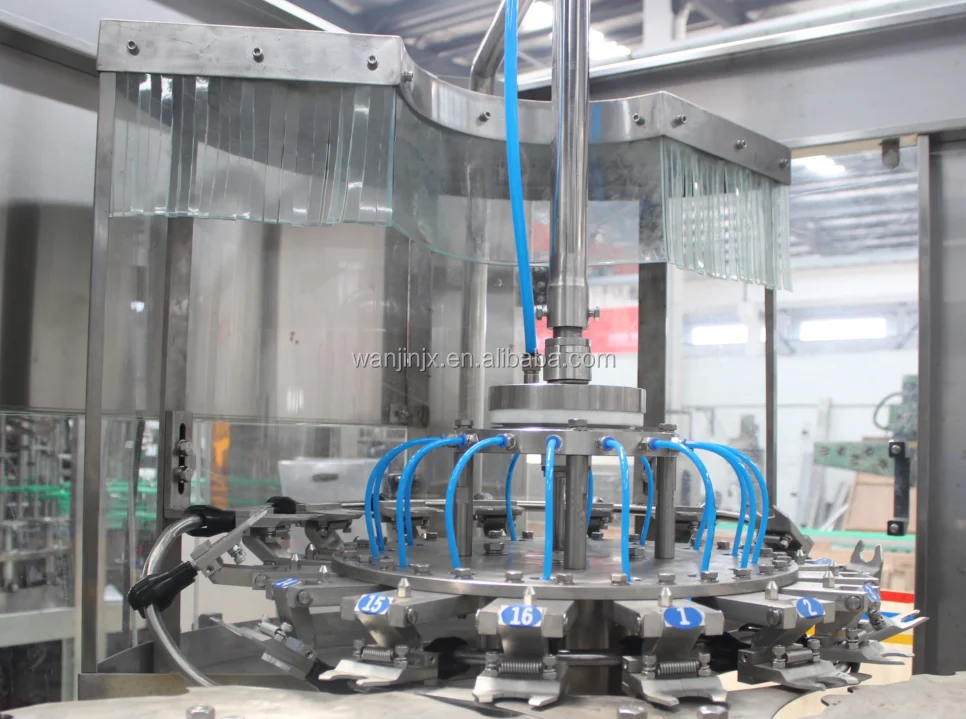

Name: washing

Brand: WANJIN

Original:China

grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.

Machine Parts

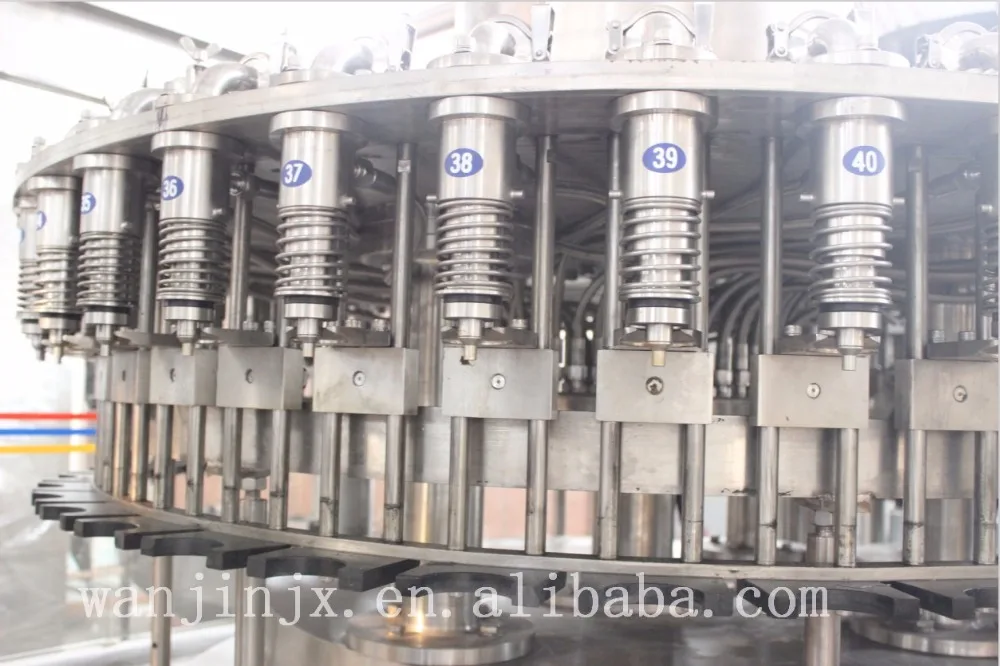

Name:filling
Brand: WANJIN
Original: China
hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

Machine Parts

Name:capping
Brand: WANJIN
Original: China

Capper should have highest precision, influence very much with stability and realiable of the filling monoboc.

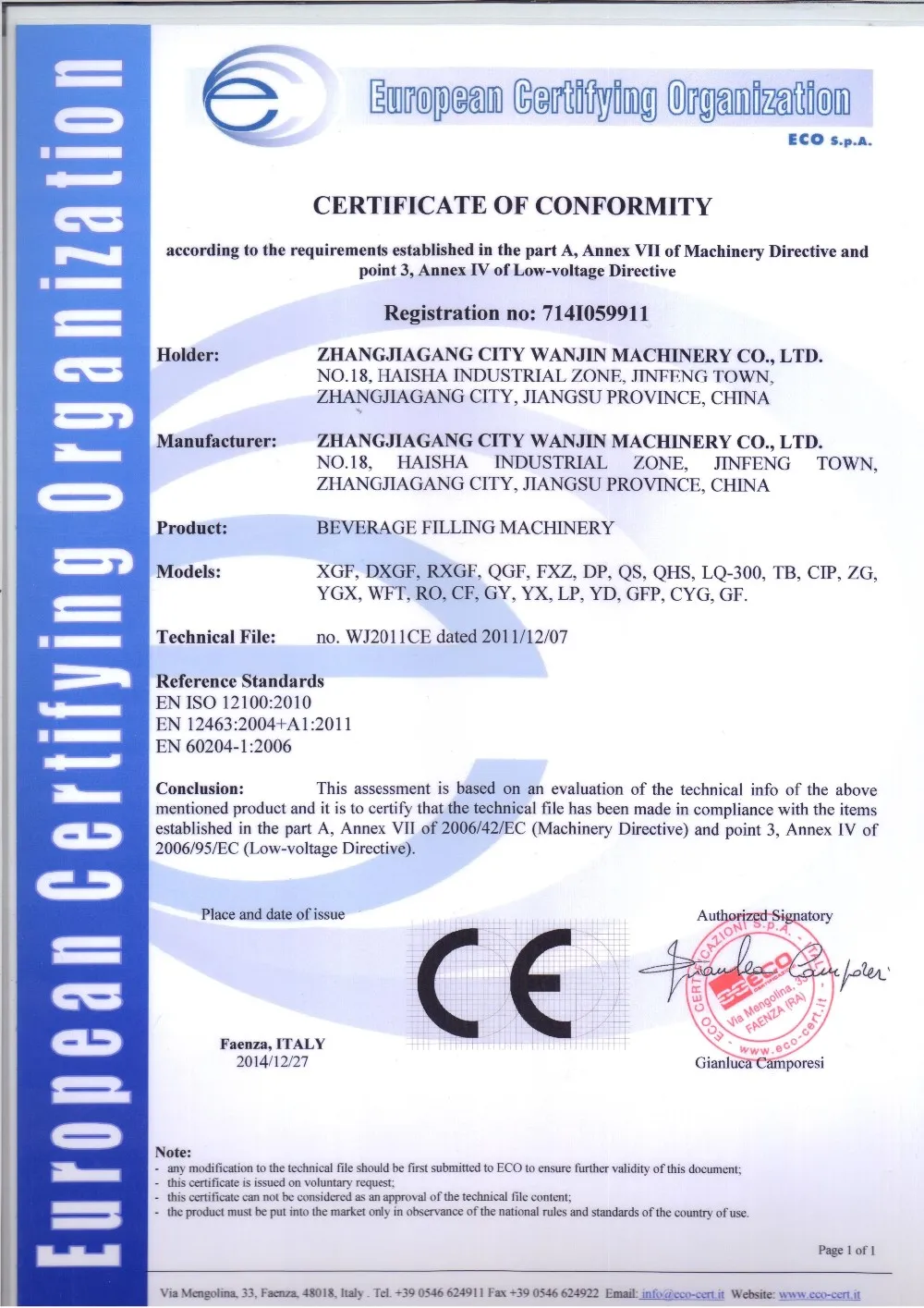

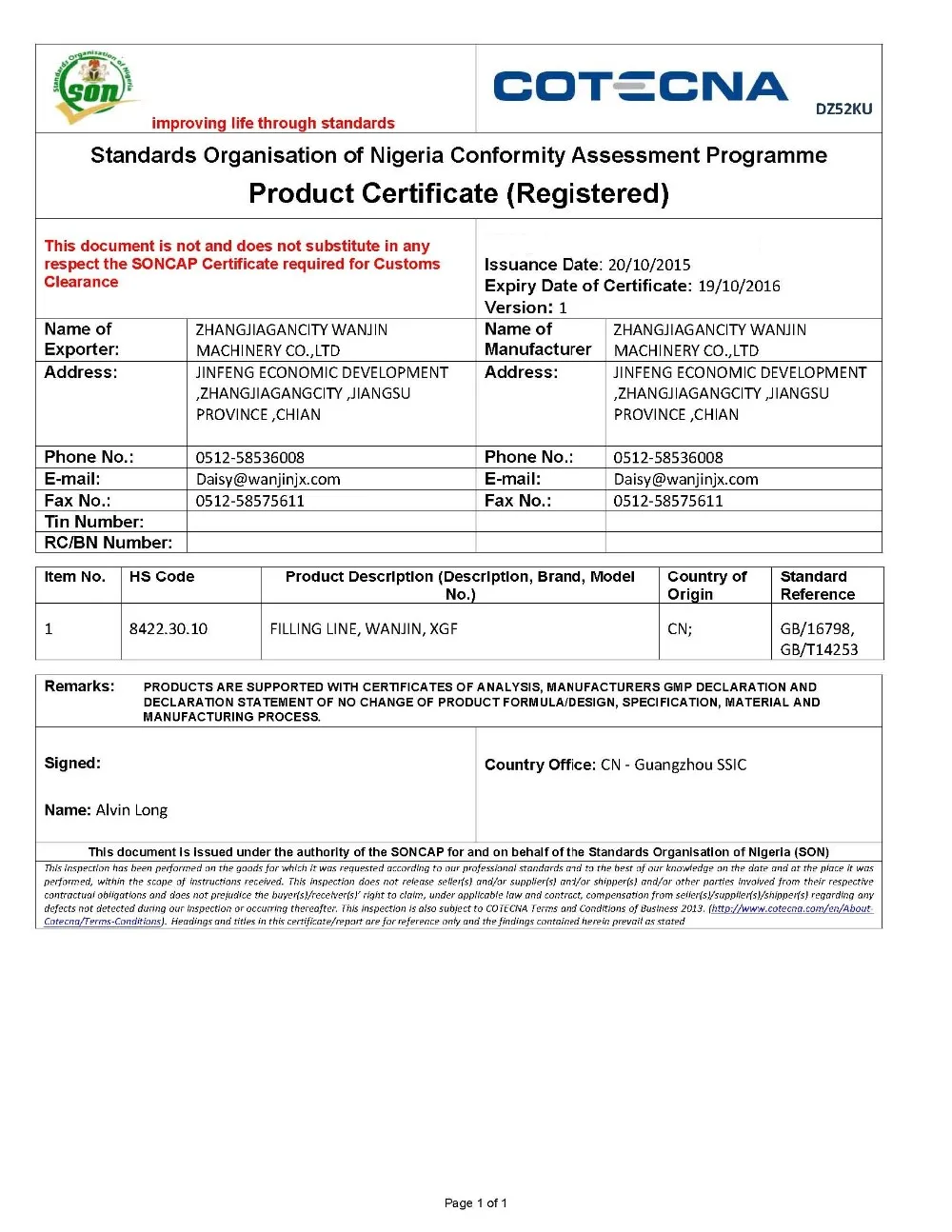

Certifications
Electrical elements
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1900 (L) * 1420 (W) * 2000 (D)
Weight
2.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
