Telecommunication equipment fiber optic splice closure, 24 to 96 core dome /horizontal optical joint closure

Telecommunication Equipment Fiber Optic Splice Closure
  • Seller Shenzhen ZHW Technology Co., Ltd.
  • Min. Order 10 Piece/Pieces
  • FOB Price US $10-30 /Piece

Product Description

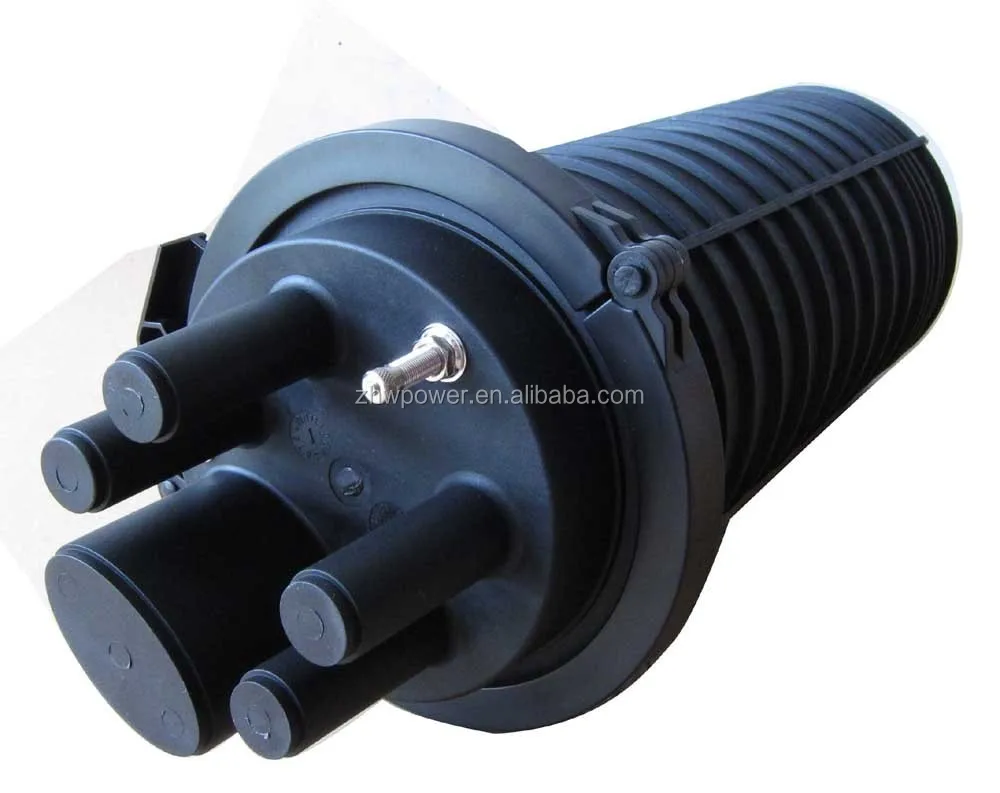

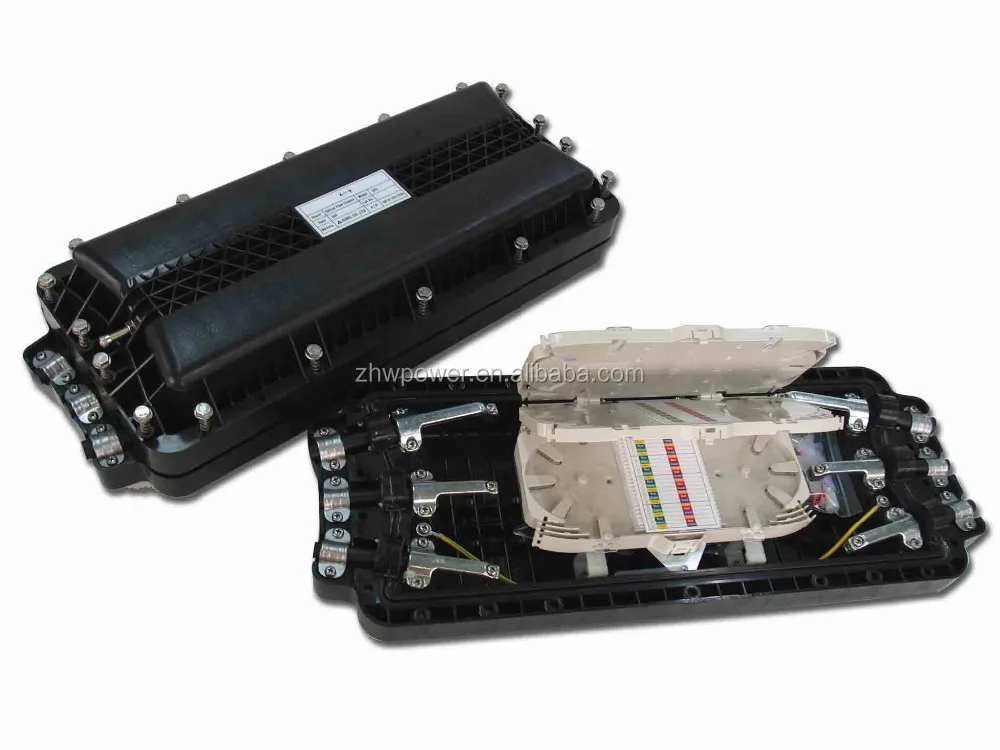

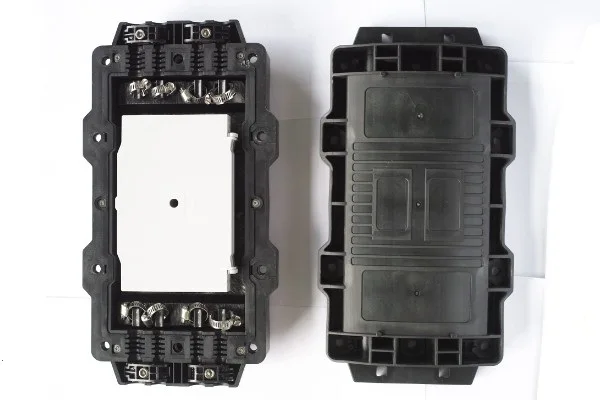

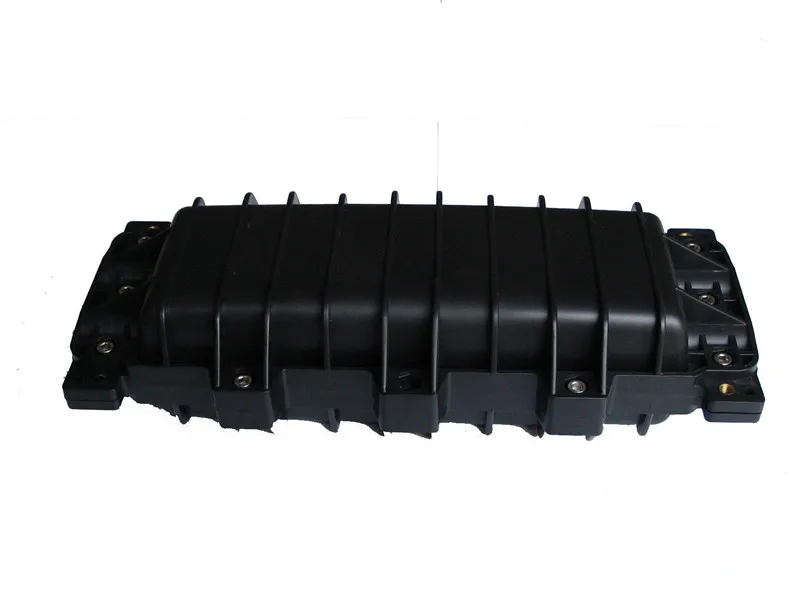

Telecommunication equipment fiber optic splice closure,24 to 96 core dome /horizontal optical joint closure

Pictures

Description:

  • Made of high strength engineering ABS, PC, ABS or PC composite material.
  • Up-down bisection GPJ-A is an arc, horizontal type.
  • 2, 4, 6, 8 pcs inlet/outlet
  • 2, 4, 6, 8 pcs trays
  • 12~288 cores total capacity
  • Slide-in-lock design, over 90° opening angle tray
  • Dimension: 400(L)x185(W)x90(H) mm
  • Elastic integrated seal ensure tightening fit

Features:

  • Innovative insert plates and fixing bolts, used to fix and seal FOSC, simple installation.
  • The FOSC is suitable for protecting fiber cable splices in straight-through and branching.
  • Good capability of corrosion resistance, anti-aging, anti-UV, fire resistant, impact resistant.
  • prevent condensation inside box, waterproof, quakeproof, while protecting splice closure during pulling.
  • It ensures long-term reliability and usage under ambient temperature from -40~+65 °C.

Parameter

Operating Temperature

-40°C~+65°C

Relative humidity

≤95%(40°C)

Atmospheric pressure

70kpa-106kpa

Connector loss (insert, repeat)

≤0.5db

Mechanical Durability Test

≥1000 times

Installation way

aerial mounted, underground buried mounted, conduit mounted, wall mounting

Warranty time

30 years
